Lock/T-Type 3-Way Connectors/Straight / Inline Connector

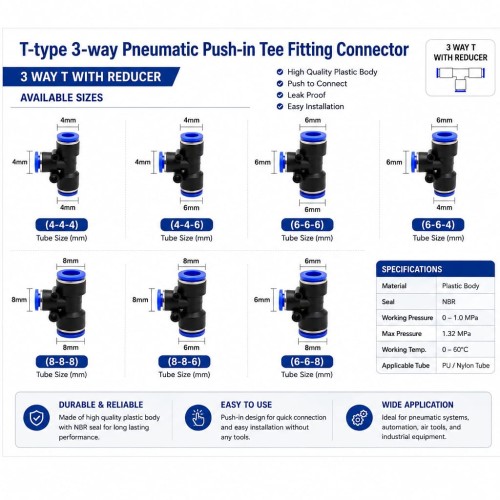

Tee Fitting Connectors (3-Way)

• T4.4.4mm (4mm x 4mm x 4mm Equal Tee)

• T4.4.6mm (4mm x 4mm x 6mm Reducing Tee)

• T6.6.6mm (6mm x 6mm x 6mm Equal Tee)

• T6.6.4mm (6mm x 6mm x 4mm Reducing Tee)

• T8.8.8mm (8mm x 8mm x 8mm Equal Tee)

• T8.8.6mm (8mm x 8mm x 6mm Reducing Tee)

• T6.6.8mm (6mm x 6mm x 8mm Reducing Tee)

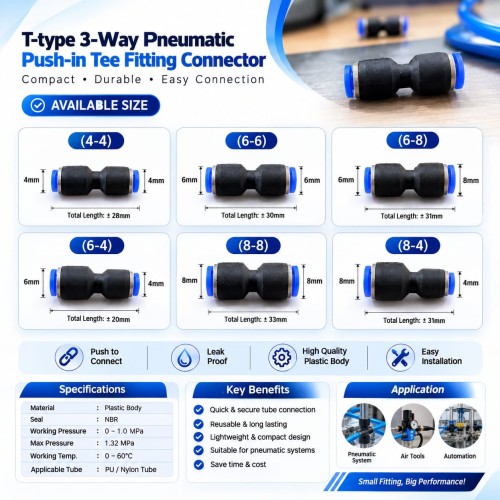

Inline / Straight Connectors

• I4.4mm (4mm to 4mm Equal Union)

• I6.6mm (6mm to 6mm Equal Union)

• I6.8mm (6mm to 8mm Reducing Connector)

• I6.4mm (6mm to 4mm Reducing Connector)

• I8.8mm (8mm to 8mm Equal Union)

• I8.4mm (8mm to 4mm Reducing Connector)

Technical Specifications

• Body Material: High-Quality Plastic

• Seal Material: NBR (Nitrile Butadiene Rubber)

• Working Pressure: $0 - 1.0 \text{ MPa}$

• Max Pressure: $1.32 \text{ MPa}$

• Working Temperature: $0 - 60^\circ\text{C}$

• Applicable Tubing: PU (Polyurethane) / Nylon Tube

Key Features & Applications

• Push-in Mechanism: Tool-free, quick tube connection and release.

• Leak-Proof Seal: Internal NBR ring provides tight sealing for stable performance.

• Applications: Suitable for pneumatic systems, air tools, automation, and industrial machinery.
