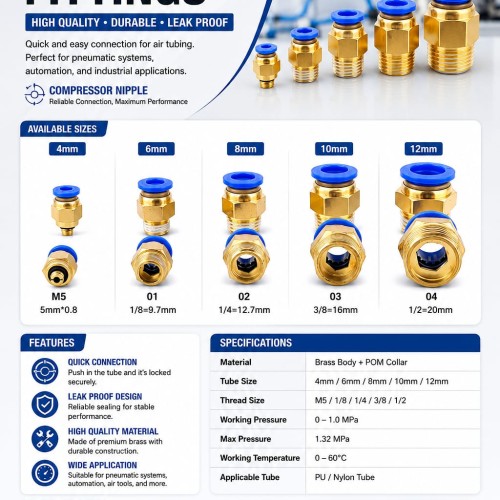

Upgrade your pneumatic setup with these premium-grade air tube connectors designed for air compressors, pneumatic systems, and industrial automation. Engineered for fast, tool-free installation while guaranteeing a 100% leak-proof air connection.
⚡ Push-to-Connect Mechanism: Instant tool-free installation—simply push the tube into the fitting to lock it securely in place.
🔒 100% Leak-Proof Design: Pre-coated Teflon threads and internal O-ring seals effectively eliminate air leaks and pressure drops.
🛠️ Heavy-Duty Construction: Built with a durable nickel-plated brass body and a high-strength POM plastic release collar for superior corrosion resistance and longevity.
⚙️ Versatile Compatibility: Perfect for connecting air lines, solenoid valves, cylinders, and automated equipment.
⚙️ Technical Specifications
| Parameter | Specification |
| Body Material |
Premium Nickel-Plated Brass + POM Collar
|
| Applicable Tubing |
PU (Polyurethane) / Nylon (PA) / PE
|
| Fluid Medium |
Compressed Air / Vacuum
|
| Working Pressure |
0 – 1.0 MPa (0 – 10 bar)
|
| Max Pressure |
1.32 MPa (13.5 kgf/cm²)
|
| Working Temperature |
0°C – 60°C
|
| Tube Outer Dia (Tube OD) | Thread Code | Thread Size & Nominal Dia |
| 4mm | M5 |
M5 × 0.8 (≈ 5mm)
|
| 6mm | 01 |
1/8" BSPT/BSP (≈ 9.7mm)
|
| 8mm | 02 |
1/4" BSPT/BSP (≈ 12.7mm)
|
| 10mm | 03 |
3/8" BSPT/BSP (≈ 16mm)
|
| 12mm | 04 |
1/2" BSPT/BSP (≈ 20mm)
|
🔹 Air compressors and solenoid valve line connections
🔹 Factory automation and industrial machinery setups
🔹 Pneumatic air tools, spray guns, and workshop air lines
🔹 3D printer Bowden extruders and PTFE tubing interfaces
